2 Positions ASTM D3939 Textile Testing Equipment ICI Mace Snag Tester

Name: 2 Positions ASTM D3939 Textile Testing Equipment ICI Mace Snag Tester
Brand: GESTER
Price: 1 USD

China 2 Positions ASTM D3939 Textile Testing Equipment ICI Mace Snag Tester factory

Brand Name : GESTER

Model Number : GT-C17

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30days

Packaging Details : wooden packaging

Power : AC220V

Usage : snagging resistance of heavyweight fabrics

Product name : ICI Mace Snag Tester

Color : White/Black

Type : Textile Testing Equipment

Warranty period : 1 year

Contact Now

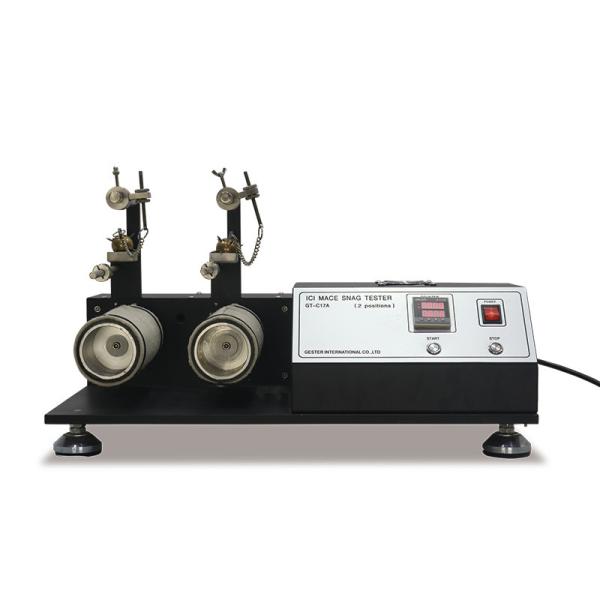

ICI Mace Snagging Resistance Tester

Product Introduction

Application:

ICI Mace Snag Tester applies to rapidly determine the snagging resistance of heavyweight fabrics such as apparel, upholstery, and automotive interiors fabrics etc.

Standards:

ASTM D3939, GB 11407, JIS L 1058, VDA 230-220

Feature

Rotating cycle number can be pre-settable.
Stop automatically after getting the preset rotating cycles.
To ensure the testing accuracy and extend the service life, the nail hammer was made up of platinum steel.
Length of chain is adjustable.

Key Specifications

Model	GT-C17A	GT-C17B
Working position	2	4
Speed	60rpm±2rpm
Testing cylinder	Φ82mm, Width: 210mm
Mace ball	Weight: 160±10g, 11 maces
Mace	Length: 10±1mm, Tip radius: R0.13mm
Counter	0-99999
Felt	Thickness: 3～3.2mm; Width: 165±1mm
Distance between nail hammer and guide rod	45±1mm
Power supply	AC 220V 50/60HZ
Dimensions(LxWxH)	560 x 420 x 480mm	945x 420 x 480mm

Accessories:

Standard accessories	1pc/pos	Felt sleeves (2pcs for GT-C17A; 4pcs for GT-C17B)
	2pcs/pos	Rubber rings (4pcs for GT-C17A; 8pcs for GT-C17B)
	1pc	Power line
Optional accessories	Optional	Tungsten carbide maces
	Optional	Standard photographs
	Optional	GT-C78 pilling assessment box
